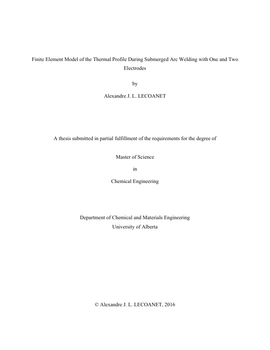

Finite Element Model of the Thermal Profile During Submerged Arc Welding with One and Two Electrodes
-
- Author / Creator
- Lecoanet, Alexandre J L
-
The submerged-arc welding (SAW) process is used extensively in the manufacturing of pipes. The heat flow introduced by the welding operation has a significant impact on the properties of both the weld metal and the heat affected zone (HAZ). The work presented in this thesis aims to develop a numerical heat flow model to predict the temperature profile in piece welded using SAW as a function of the welding parameters. Measurement were done using instrumented thermocouples during an operation of SAW with one electrode. The models were then compared to the measurements and a sensitivity analysis was carried out on the density, the specific heat, the parameter called “ff” in the double ellipsoid model, and the Neumann boundary condition. The three models used are a point source model giving results similar to Rosenthal’s results, a model using a double ellipsoid heat source with constant thermal properties, and a model using a double ellipsoid heat source with varying thermal properties. The presence of the thermocouples linked to the data acquisition system used in the experiment disturbed the weld but workable data were still extracted. Then the comparison between the measurement and the simulations showed that the most accurate model is the one using a double ellipsoid heat source with varying thermal properties. It predicts well the heating and the cooling phases of all the temperature profiles recorded but it predicts the peak well only for the thermocouples located around 12 mm from the center of the plate closer it overestimates the peak. The sensitivity analysis showed that the most sensitive parameters are the thermal properties. It also showed that the parameter called “ff” in Goldak’s approach is sensitive. The Neumann boundary condition is not a sensitive parameter. Also when measurements are done using thermocouples close to the knowing the exact location of the thermocouples is crucial.
-
- Subjects / Keywords
-
- Modelling temperature profile during SAW
- Quasi-steady state
- Modelling of submerged arc welding
- Heat transfer in welding
- FEM modelling of SAW
- Modelling temperature profile during submerged arc welding
- Welding of X70
- Mixed boundary condition
- Thermal profile
- Simulation of SAW
- Temperature measurement during SAW
- Point source
- Instrumented thermocouples
- Submerged arc welding
- Modelling of SAW
- Multiple electrode welding
- Simulation of welding with COMSOL
- Temperature measurement during submerged arc welding
- Removing outliers
- Welding
- Statistical analysis
- Simulation with two point sources
- FEM
- Two electrode welding
- Welding with two electrodes
- Welding of pipelines
- Sensitivity analysis
- Simulation of welding
- Temperature measurement during a welding operation
- Modelling temperature profile
- Finite-element-method
- Heat tranfer in moving coordinate system
- SAW
- Infinite elements
- Varying thermal properties
- Sensitivity of the thermal properties
- Instrumented welds
- Modelling temperature profile during welding
- Sensitivity analysis on submerged arc welding
- Simulations
- Bead shape parameters
- Modelling
- Sensitivity analysis on SAW
- Double ellipsoid source
- Finite element method SAW
- Application of infinite elements to welding
- Temperature profile
-
- Graduation date
- 2016-06
-
- Type of Item
- Thesis
-
- Degree
- Master of Science
-
