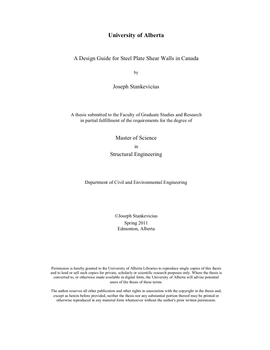

A design guide for steel plate shear walls in Canada

  • Author / Creator
    Stankevicius, Joseph
  • Steel plate shear walls have typically been analyzed using quasi static and monotonic pushover analysis; however, dynamic excitations during an earthquake elicit different behaviour from the structure due to the nature of the loading. This report outlines the design and analysis of a steel plate shear wall according to NBCC and S16-09 requirements. For lateral loading, wind and seismic forces are considered. The NBCC recognizes two procedures for determining seismic loading, the equivalent static force procedure and dynamic analysis. An analytical model was created in SAP2000® using capacity design principals and the strip model. The dynamic analysis uses bi-directional tension strips to resist load reversals and was validated against a finite element analysis using ABAQUS®. The dynamic analysis provided an effective means of designing the steel plate shear wall. The equivalent static force procedure resulted in a similar design; however, the structure required stiffening to meet the deflection requirements.

  • Subjects / Keywords
  • Graduation date
    2011-06
  • Type of Item
    Thesis
  • Degree
    Master of Science
  • DOI
    https://doi.org/10.7939/R39346
  • License
    This thesis is made available by the University of Alberta Libraries with permission of the copyright owner solely for non-commercial purposes. This thesis, or any portion thereof, may not otherwise be copied or reproduced without the written consent of the copyright owner, except to the extent permitted by Canadian copyright law.
  • Language
    English
  • Institution
    University of Alberta
  • Degree level
    Master's
  • Department
    • Department of Civil and Environmental Engineering
  • Supervisor / co-supervisor and their department(s)
    • Grondin, Gilbert (Department of Civil and Environmental Engineering)
  • Examining committee members and their departments
    • Mertiny, Pierre (Department of Mechanical Engineering)
    • Grondin, Gilbert (Department of Civil and Environmental Engineering)
    • Adeeb, Samer (Department of Civil and Environmental Engineering)
