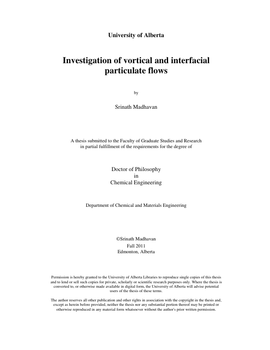

Investigation of vortical and interfacial particulate flows

• Author / Creator

  Madhavan, Srinath

• Nonlinearity in the Navier-Stokes equations can originate from a variety of sources, such as contributions stemming from the advective term, constitutive closure models or external factors such as chemical reactions and capillarity. Needless to say, a combination of any of the above sources has the potential to exasperate the problem significantly. This dissertation explores cases that predominantly feature advective and/or capillary effects. In particular, we first consider the inertia-dominated problem of single-phase flow past a confined square cylinder, followed by a study focused on the low-Re dynamics of rigid particles straddling non-planar interfaces.

  The first part of the thesis investigates transient, three-dimensional, incompressible and isothermal flow of a Newtonian fluid past a symmetrically confined obstacle at zero incidence. Results from both Laser Doppler Velocimetry (LDV) experiments and direct simulations upto Re = 250 have been reported. Beyond the onset of instability (Recr ≈ 58), an inflexion point around Re ≈ 115 is detected for the Strouhal number with no evidence of hysteresis in any of the measurements. Furthermore, incommensurate frequencies observed in the range 127 ≤ Re ≤ 175 suggest a quasi-periodic transition to three-dimensionality. This is shown to be followed by an intermediate periodic window starting around Re ≈ 180. Fourier analysis and spanwise velocity correlations are then used to characterize the observed phenomena. Subsequent analysis of consolidated data suggest that only a parametric variation of transverse and spanwise blockage ratios can bring closure to the subject of bluff-body wake transitions.

  The second part of the thesis implements and validates a physically consistent continuum model for the Moving Contact Line (MCL) through direct simulations. After elaborately discussing the MCL conundrum, a fundamental framework for the simulations is outlined in a theoretical orientation which combines the Level set method with a Fictitious domain approach in a finite-element scheme. The thesis objectives are then realized through simulation of various case studies that show favorable comparisons with theoretical and/or published experimental data. In short, the current work successfully illustrates the potential of novel boundary conditions (such as the GNBC) to accurately describe MCL dynamics.

• Subjects / Keywords

  • Finite elements
  • Levelset
  • Contact line
  • Quasiperiodicity
  • GNBC
  • Fictitious
  • Capillarity
  • DNS
  • LDA
  • Instability
  • Bluff body

• Graduation date

  Fall 2011

• Type of Item

  Thesis

• Degree

  Doctor of Philosophy in Chemical Engineering

• DOI

  https://doi.org/10.7939/R3GD23
