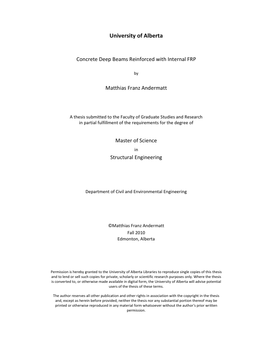

Concrete deep beams reinforced with internal FRP

• Author / Creator

  Andermatt, Matthias

• Concrete deep beams with small shear span-to-depth (a/d) ratios are common elements in structures. However, there are few experimental results on the behaviour of FRP reinforced concrete deep beams and no specific modelling techniques exist in design codes for such members. The objectives of this study were to examine the shear behaviour of FRP reinforced concrete deep beams containing no web reinforcement and to develop a modelling technique.

  Test results of 12 large-scale specimens are reported where the primary variables included the a/d ratio, reinforcement ratio, member height, and concrete strength. The results showed that an arch mechanism was able to form in FRP reinforced concrete beams having a/d ≤ 2.1. A strut and tie modelling procedure adapted from CSA A23.3-04 was capable of accurately predicting the capacity of FRP reinforced concrete deep beams containing no web reinforcement while sectional shear models gave poor, but conservative, predictions.

• Subjects / Keywords

  • Reinforcement
  • Deep beam
  • A/d ratio
  • Reinforced concrete
  • Behaviours
  • Fibre reinforced polymer
  • FRP
  • Shear
  • Shear span-to-depth ratio
  • Arch
  • Strut and tie
  • Experiment

• Graduation date

  Fall 2010

• Type of Item

  Thesis

• Degree

  Master of Science

• DOI

  https://doi.org/10.7939/R3TT6V
