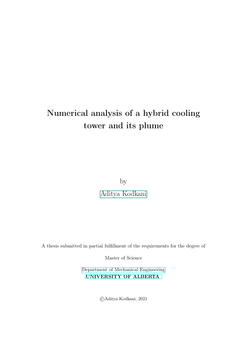

Numerical analysis of a hybrid cooling tower and its plume

• Author / Creator

  Aditya Kodkani

• The most practical and economical method of dissipating waste heat from power stations and related heavy industry is via wet cooling towers. These towers dissipate the
  waste heat present in a stream of hot process water primarily by evaporating some
  small fraction of this water, which, in turn, leads to evaporative cooling. As a byproduct of this evaporation, wet cooling towers must emit to the atmosphere air that is
  hot and moist. Under select climatic conditions (e.g. cold ambient air with an elevated
  relative humidity), a visible plume may form. Such a plume is considered a public
  nuisance and may lead to an unwanted accumulation of moisture or, worse yet, ice on
  surrounding infrastructure e.g. roadways, runways and industrial facilities. To avoid
  such undesirable outcomes and to conserve water, a combination of wet and dry cooling
  may be employed in a hybrid cooling tower. To design a hybrid cooling tower for effective visible plume abatement, one requires not only knowledge of the turbulent mixing
  characteristics of the atmospheric plume but, in tandem, a model that describes heat
  and mass transfer processes within the cooling tower itself.
  This thesis presents a mathematical model to study the heat and mass transfer inside
  a hybrid cooling tower and a model to predict the behaviour of the atmospheric plume.
  The wet-portion model expands upon one presented in the earlier study of Klimanek and
  Bialecki (Int. Commun Heat Mass 36:547-553, 2009) by assigning zone-specific Merkel
  numbers to each of the rain, fill, and spray zones. Accordingly, we can determine,
  zone-by-zone, rates of heat rejection and water evaporation. By extension, we can
  estimate the mass flow rate of water and the humidity ratio and related thermodynamic
  properties of the outlet air and water streams. Our augmented model is validated
  against the well-established Poppe and Merkel methods as well as select field data from
  a multi-cell cooling tower located in Colorado, USA.
  A turbulent plume model based on the conservation of mass, momentum, heat, and
  moisture is adapted from the work of Wu and Koh (1978) [1] is coupled with the
  tower model described above. As a result, we are able to predict the behaviour of
  plumes emanating from multiple cooling tower cells. By extension, predictions of the
  likelihood of fog formation and, where applicable, of the visible plume height may be
  made. Special reference is made to ambient states characterized as hot-dry, hot-humid,
  cool-dry, and cool-humid to study cooling tower performance under a variety of climatic
  conditions.

• Subjects / Keywords

  • Cooling tower
  • plume
  • hybrid cooling
  • Merkel method

• Graduation date

  Spring 2021

• Type of Item

  Thesis

• Degree

  Master of Science

• DOI

  https://doi.org/10.7939/r3-5vwz-kc92
