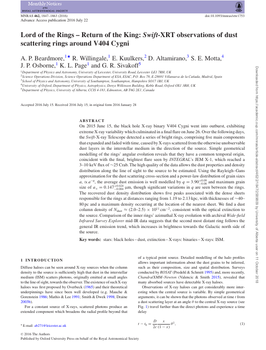

Lord of the Rings - Return of the King: Swift-XRT observations of dust scattering rings around V404 Cygni

• Author(s) / Creator(s)

  • Beardmore, A. P.
  • Willingale, R.
  • Kuulkers, E.
  • Altamirano, Diego
  • Motta, S. E.
  • Osborne, J. P.
  • Page, Kim L.
  • Sivakoff, Gregory Robert

• On 2015 June 15, the black hole X-ray binary V404 Cygni went into outburst, exhibiting extreme X-ray variability which culminated in a final flare on June 26. Over the following days, the Swift-X-ray Telescope detected a series of bright rings, comprising five main components that expanded and faded with time, caused by X-rays scattered from the otherwise unobservable dust layers in the interstellar medium in the direction of the source. Simple geometrical modelling of the rings’ angular evolution reveals that they have a common temporal origin, coincident with the final, brightest flare seen by INTEGRAL's JEM X-1, which reached a 3–10 keV flux of ∼25 Crab. The high quality of the data allows the dust properties and density distribution along the line of sight to the source to be estimated. Using the Rayleigh–Gans approximation for the dust scattering cross-section and a power-law distribution of grain sizes a, ∝ a−q, the average dust emission is well modelled by q=3.90+0.09−0.08 and maximum grain size of a+=0.147+0.024−0.004 μm, though significant variations in q are seen between the rings. The recovered dust density distribution shows five peaks associated with the dense sheets responsible for the rings at distances ranging from 1.19 to 2.13 kpc, with thicknesses of ∼40–80 pc and a maximum density occurring at the location of the nearest sheet. We find a dust column density of Ndust ≈ (2.0–2.5) × 1011 cm−2, consistent with the optical extinction to the source. Comparison of the inner rings’ azimuthal X-ray evolution with archival Wide-field Infrared Survey Explorer mid-IR data suggests that the second most distant ring follows the general IR emission trend, which increases in brightness towards the Galactic north side of the source.

• Date created

  2016-01-01

• Subjects / Keywords

  • X-Rays: Ism
  • Stars: Black Holes
  • X-Rays: Binaries
  • Dust
  • Extinction

• Type of Item

  Article (Published)

• DOI

  https://doi.org/10.7939/r3-dh2h-d826

• License

  This article has been accepted for publication in Monthly Notices of the Royal Astronomical Society ©: 2016 The Author(s) Published by Oxford University Press on behalf of the Royal Astronomical Society. All rights reserved.
