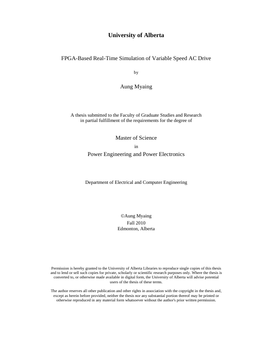

FPGA-Based Real-Time Simulation of Variable Speed AC Drive

  • Author / Creator
    Myaing, Aung
  • Sophisticated power electronic apparatus and their digital control systems are finding increasing applications in electric power systems at generation, transmission, distribution and utilization levels. It is essential to carry out rigorous performance evaluation of such apparatus before commissioning. Field Programmable Gate Arrays (FPGAs) are becoming an attractive platform for accelerating computationally intensive applications. This thesis presents a FPGA-based real-time digital simulator for power electronic drives based on realistic device characteristics. A 3-level 12-pulse Voltage Source Converter (VSC) fed induction machine drive is implemented on the FPGA. The system components include the 3-level VSC, the induction machine, the direct field oriented controller, and the pulse width modulator. Both system-level and device-level IGBT models are utilized to implement the VSC. The VSC model is computed at a fixed time-step of 12:5ns allowing an accurate representation of the IGBT nonlinear switching characteristics. Altera Startix EP1S80 and EP3SL150F1152C2 FPGA boards utilized for the real-time simulation. All models were implemented in VHDL. The FPGA boards were interfaced to external DAC boards to display real-time results on the oscilloscope. The real-time results were validated using an off-line cosimulation set-up using the SABER and MATLAB/SIMULINK software.

  • Subjects / Keywords
  • Graduation date
    2010-11
  • Type of Item
    Thesis
  • Degree
    Master of Science
  • DOI
    https://doi.org/10.7939/R3TC84
  • License
    This thesis is made available by the University of Alberta Libraries with permission of the copyright owner solely for non-commercial purposes. This thesis, or any portion thereof, may not otherwise be copied or reproduced without the written consent of the copyright owner, except to the extent permitted by Canadian copyright law.
  • Language
    English
  • Institution
    University of Alberta
  • Degree level
    Master's
  • Department
    • Department of Electrical and Computer Engineering
  • Supervisor / co-supervisor and their department(s)
    • Dinavahi, Venkata (Electrical and Computer Engineering)
  • Examining committee members and their departments
    • Kumar, Amit (Mechanical Engineering)
    • Koval, Don (Electrical and Computer Engineering)
